Navigating the vast array of brushless micromotor systems on the market can be overwhelming. Yet, choosing a brushless model is the smartest starting point, delivering superior power, lower maintenance, and a significantly longer lifespan than brushed designs. This step-by-step guide ensures an efficient and cost-effective choice for your specific needs.

Step One: Define Your Project Needs

The best micromotor is the one perfectly aligned with your intended use. Before looking at specifications, you must clearly define the demands of your work.

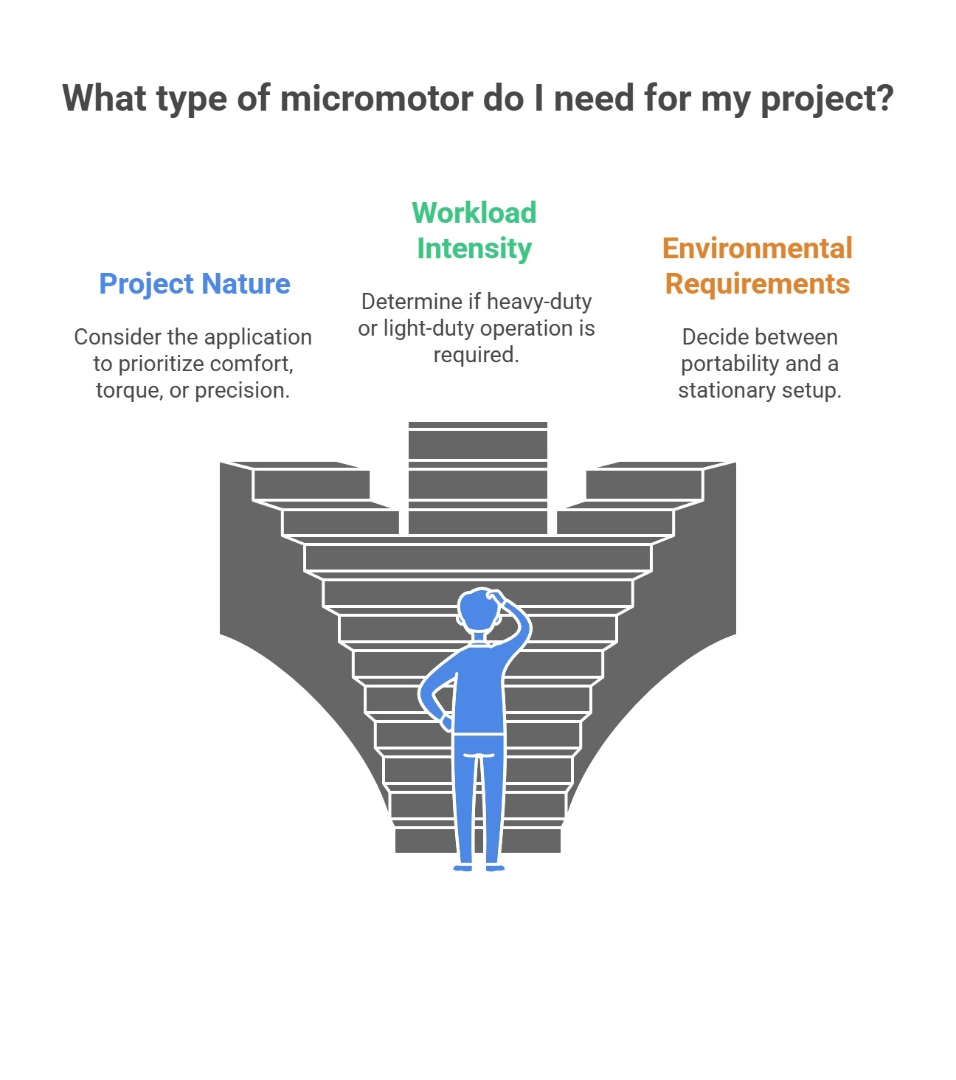

Diagram for micromotor selection based on Project Nature, Workload, and Environmental Needs.

Diagram for micromotor selection based on Project Nature, Workload, and Environmental Needs.

Project Nature and Application:
- Are you primarily working in nail art and beauty (prioritizing comfort and quiet operation)?
- Are you a jewelry maker or precision engraver (demanding sustained high torque on hard metals)?
- Are you a dental technician or lab worker (requiring precision and durability for various alloys and materials)?
Workload Intensity (Heavy vs. Light Duty):
- Heavy Duty: Your system must withstand continuous operation for extended periods (e.g., hours of dental grinding or bulk metal shaping) or consistently handle extremely hard materials.
- Light Duty: Your work is intermittent, focused on fine finishing, detail work, or softer materials.
Environmental Requirements:
- Do you need portability (a battery-powered system for mobile use) or a robust, stationary (plug-in) control box for a benchtop setup?

Step Two: Understanding the Three Core Technical Parameters

Once your needs are defined, the next step is to match them to the correct technical specifications. These three parameters are the absolute key to performance in any professional brushless micromotor.

Key Parameter	Influencing Factors	Selection Focus for Your Project
Sustained Torque	The core of project stability. Determines whether the motor will stall or slow down when pressure is applied.	High torque is essential for heavy-duty work, especially grinding dense metals or acrylics. Never sacrifice torque for speed if your work involves significant material removal.
Maximum RPM	Project efficiency and precision. Determines the material removal speed and the final surface smoothness.	High RPM (e.g., 40,000 RPM) is crucial for rapid processing, drilling, and achieving mirror-like finishes during polishing.
Rated Power	Project durability and longevity. Determines the continuous working time the device can withstand without overheating.	High power (e.g., 50W+) indicates a robust motor and cooling system, suitable for high-intensity, long-duration professional projects where downtime is unacceptable.

Step Three: Selecting the Optimal Configuration Based on Application Scenarios

Here is a breakdown of how the parameters should align with common professional applications for brushless micromotor systems:

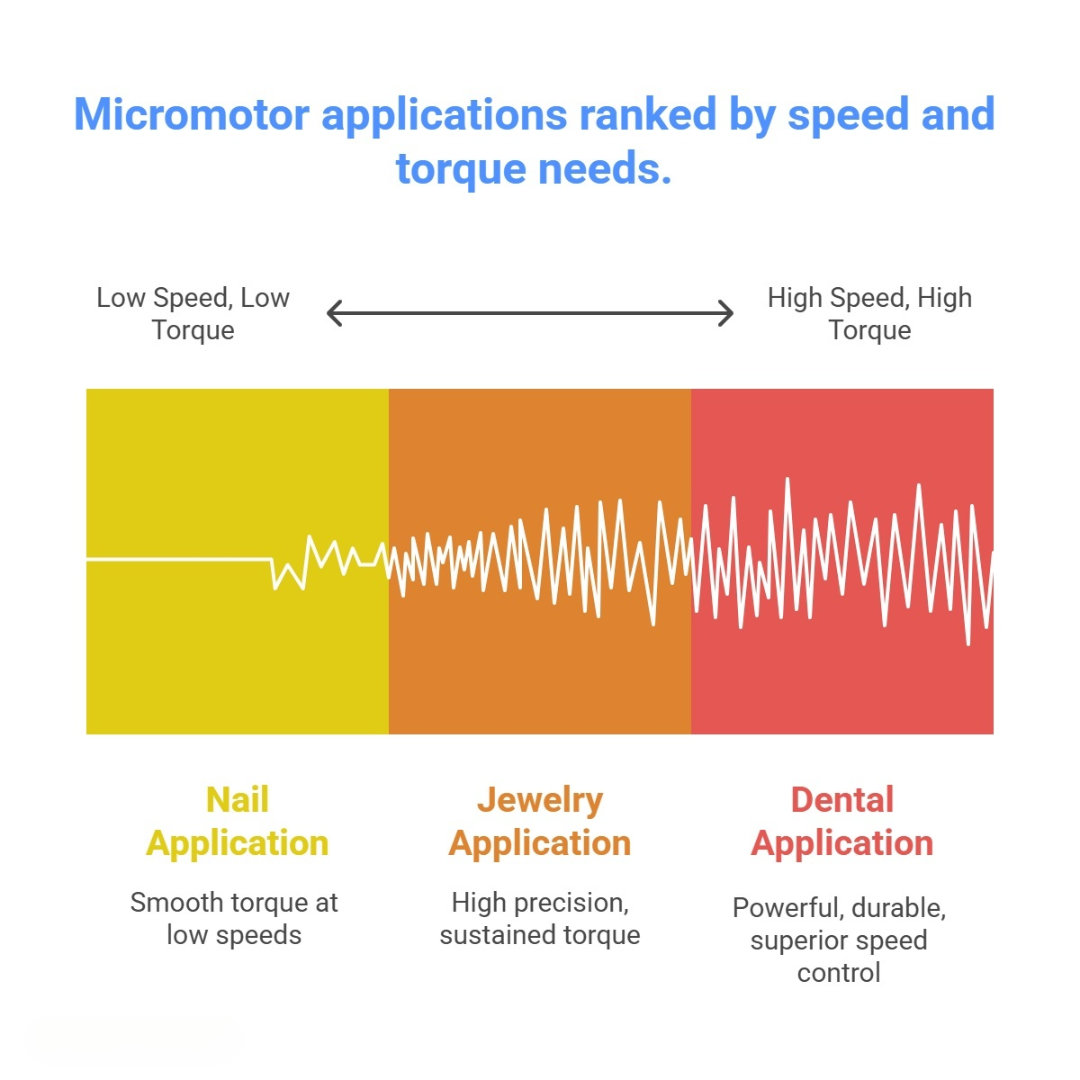

Chart ranking micromotor applications (Nail, Jewelry, Dental) by speed and torque requirements, from low to high.

Chart ranking micromotor applications (Nail, Jewelry, Dental) by speed and torque requirements, from low to high.

A. Professional Nail/Pedicure Application

Key Requirements: Low vibration, lightweight handpiece, minimal noise, and comfort for the client and technician.
Recommended Specifications: Focus on a system around 35,000 RPM that offers smooth, consistent torque at low speeds for cuticle work. Prioritize handpiece weight (under 200g) and low acoustic noise.

B. Jewelry/Precision Engraving

Key Requirements: High precision, high sustained torque, and the ability to operate for long hours under load.
Recommended Specifications: 40,000-50,000 RPM class with high power output. The paramount concern is torque consistency when working on hard metals like gold or platinum. Look for a robust control unit designed for continuous operation.

C. Dental Technicians/Laboratories

Key Requirements: Powerful and durable for heavy-duty operation on ceramic, zirconia, and metal alloys; superior speed control.
Recommended Specifications: High-power main unit, often 50,000 RPM or higher, featuring an excellent cooling system to support long-term, high-load grinding. Precision control and the ability to hold a high level of chuck concentricity are non-negotiable for accurate lab work.

Step Four: Evaluate Handpiece Design and Usage Comfort

Performance numbers only tell half the story. A truly professional micromotor tool offers superior ergonomics, turning hours of tedious work into a comfortable experience.

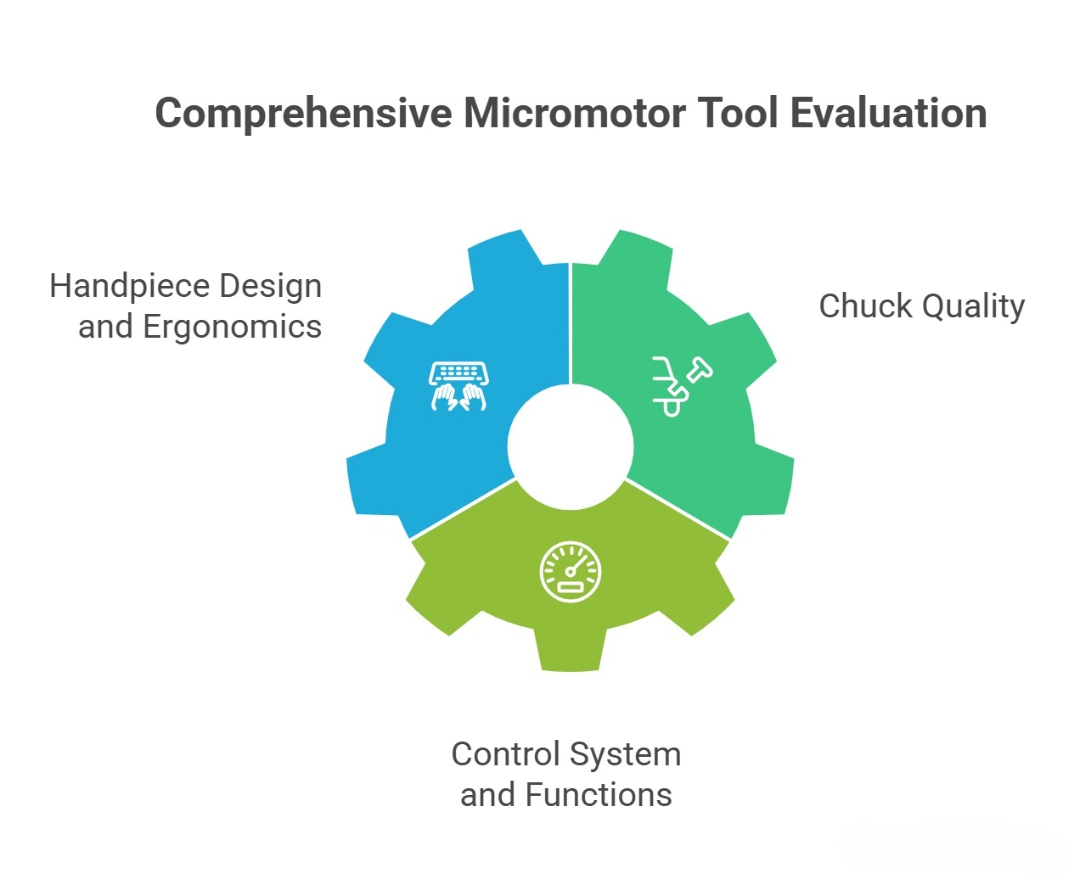

Diagram showing three micromotor evaluation criteria: Handpiece Design and Ergonomics, Chuck Quality, and Control System

Handpiece Design and Ergonomics

The handpiece is where you spend your workday. Evaluate its vibration level, weight, and grip comfort. A lightweight, well-balanced design significantly reduces hand fatigue, which directly translates to improved precision and consistency during long working sessions.

Chuck Quality

The chuck holds your bur, drill bit, or mandrel. The ease of quick-change is important, but the stability of the clamping force is critical. A secure chuck prevents the bit from slipping and ensures high concentricity (no wobble), which is vital for achieving fine, accurate results and extending tool life.

Control System and Functions

Check the host unit's features. Is the speed control (whether via foot pedal or knob) responsive and accurate? A digital RPM display provides useful reference. Furthermore, a practical forward and reverse function is standard on quality brushless micromotors, allowing for grinding efficiency and safe bur detachment in tight spaces.

Conclusion

Choosing the right brushless micromotor is about finding the optimal balance of specifications that align with your specific project demands. The best micro motor is always the one that best suits your needs—not necessarily the one with the highest RPM on the box. Prioritize sustained torque for heavy work and ergonomics for long hours of detailed craftsmanship.
Ready to find the perfect professional tool to elevate your work? We invite you to explore the carefully curated selection of brushless micromotor systems at RHJC, designed to meet the rigorous demands of professional technicians and artists worldwide.
