How to Repair Your Micromotor Handpiece

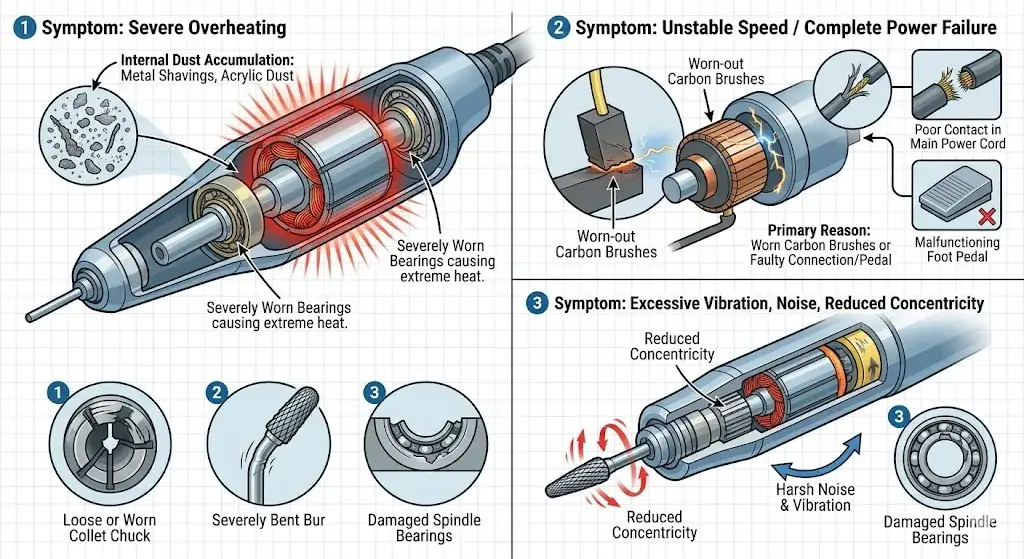

I. Common Fault Diagnosis Matrix

Check this troubleshooting matrix to identify issues before completely disassembling your valuable rotary equipment on the workbench.


Symptom 1: Severe Overheating

1. Possible Causes: Internal dust accumulation, which often includes microscopic metal shavings or acrylic dust, is definitely the primary main culprit here. Severely worn internal bearings or prolonged continuous operation under heavy loads will also cause extreme heat buildup.

Symptom 2: Unstable Speed or Complete Power Failure

1. Possible Causes: Worn-out carbon brushes are usually the primary reason for a sudden and completely unexpected loss of rotational power. You should also carefully check for a poor contact inside the main power cord or a malfunctioning foot pedal.

Symptom 3: Excessive Vibration, Harsh Noise, or Reduced Concentricity

1. Possible Causes: A loose or worn collet chuck will easily destroy your working accuracy during delicate procedures. Using a severely bent bur or an unbalanced Dremel buffing wheel inevitably causes harsh noise and violent, uncontrollable shaking. Damaged internal spindle bearings are another very common reason for noticeably reduced concentricity during your daily fine detail work.

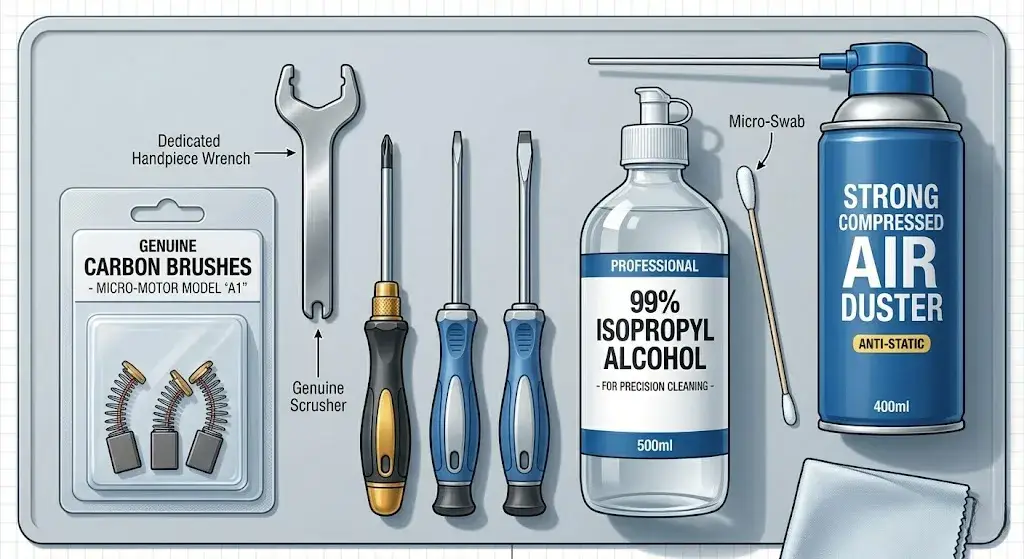

II. Essential Repair Tools Checklist

Gather these specific items before starting:


1. A dedicated handpiece wrench or specialized chuck wrench.
2. Genuine replacement carbon brushes matching your exact model.
3. You will need high-quality precision Phillips and flathead screwdrivers.
4. Isopropyl alcohol or a specialized industrial cleaning solution.
5. A strong compressed air duster for removing fine particles.

III. Step-by-Step Repair Guide

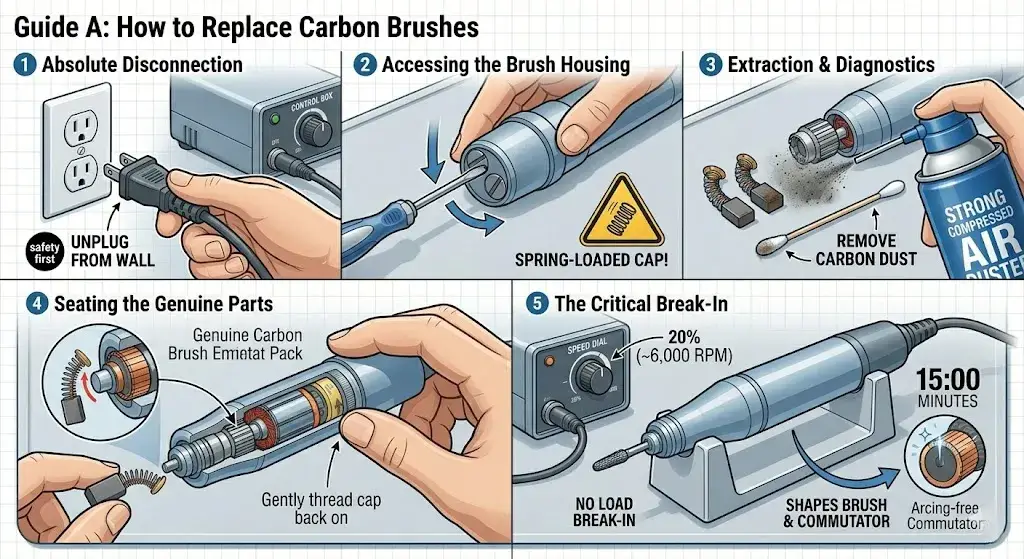

Guide A: How to Replace Carbon Brushes (The Most Common Maintenance Task)



1. Absolute Disconnection. Unplug the main control box from the wall outlet entirely. Never rely simply on the front power switch. Safety comes first.
2. Accessing the Brush Housing. Locate the two slotted screw caps at the extreme rear of the handpiece. Use a perfectly sized precision flathead screwdriver. Turn counter-clockwise slowly. Caution: These caps are spring-loaded. Maintain firm downward pressure so the cap and spring do not fly across the room.
3. Extraction and Diagnostics. Pull out the old carbon brushes. Look closely at them. Are they worn unevenly? Is the attached copper spring completely burnt or discolored? Severely darkened springs clearly indicate extreme motor overheating. Next, use your compressed air duster. Blow air directly into the open slots to remove all trapped, conductive carbon dust.
4. Seating the Genuine Parts. Insert the new, genuine replacement brushes. The curved contact edge of the carbon must align perfectly with the internal motor commutator. Press the spring down gently. Carefully thread the cap back on by hand first. Tighten with the screwdriver until just flush with the housing. Do not overtighten.
5. The Critical Break-In (Do Not Skip). This is the absolute secret to motor longevity. Plug the unit in. Turn the machine on. Set the speed dial to a low 20% (roughly 5,000 to 8,000 RPM). Let the handpiece run with no load for 15 solid minutes. Why? This gentle rotation perfectly shapes the flat new carbon against the curved metal commutator, preventing damaging electrical arcing.

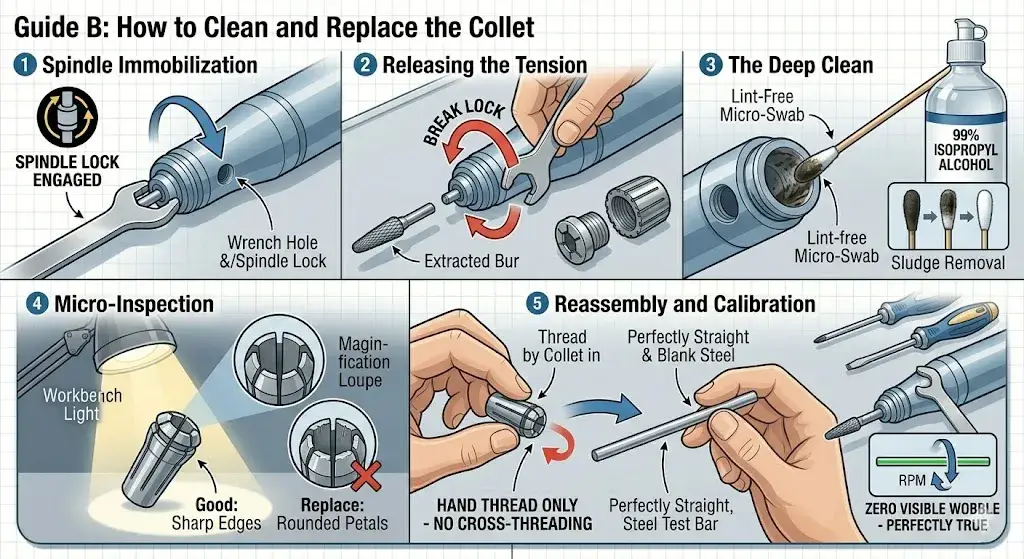

Guide B: How to Clean and Replace the Collet

Because the dental and jewelry industries demand extreme precision, internal dust accumulation can easily cause grinding heads to slip.


1. Spindle Immobilization. Locate the wrench hole or mechanical spindle lock on your specific handpiece model. Insert your dedicated chuck wrench securely.
2. Releasing the Tension. Turn the wrench firmly counter-clockwise to break the lock. Once loose, pull out the current bur or test bar. Continue turning the wrench until the metal collet is completely unscrewed from the front cavity.
3. The Deep Clean. Do not just blow air. Dip a lint-free micro-swab in 99% isopropyl alcohol. Thoroughly swab the inside of the hollow metal spindle cavity. You will likely extract a dark sludge of oil and microscopic metal dust. Clean it repeatedly until the swab comes out completely white.
4. Micro-Inspection. Examine the extracted collet under a bright workbench light. Look for deep scoring or metallic fatigue on the three inner gripping petals. If the edges look rounded or stripped, throw the collet away immediately.
5. Reassembly and Calibration. Insert the clean or brand-new collet. Thread it in gently by hand first. This absolutely prevents stripped cross-threading. Insert a perfectly straight, blank steel test bar. Finally, tighten the assembly firmly with the chuck wrench. Turn the machine on. Observe the spinning bar closely. It should spin perfectly true. You should see zero visible wobble.

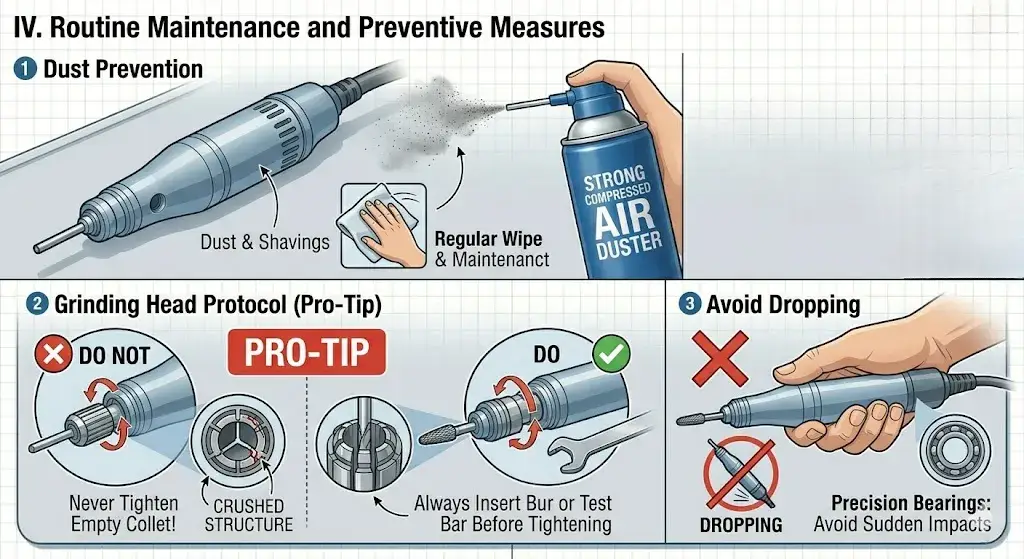

IV. Routine Maintenance and Preventive Measures



1. Dust Prevention: Perform regular cleaning routines in high-dust environments, especially near industrial polishing or mold grinding stations.
2. Grinding Head Protocol: Never tighten the collet without a grinding head or blank test bar safely inserted. Doing so will permanently crush and destroy the delicate internal mechanical structure of the collet chuck.
3. Avoid Dropping: Precision spindle bearings are highly sensitive to sudden physical impacts. Treat it carefully.
