How to Change and Clean a Micromotor Collet Chuck

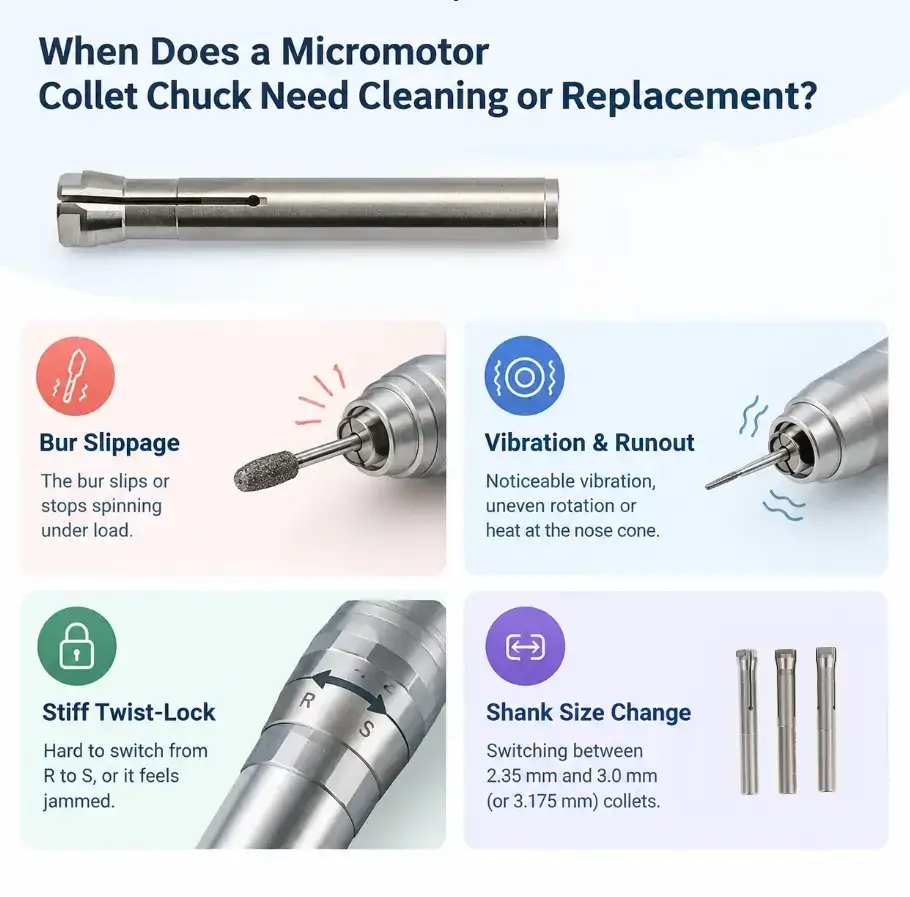

I.Diagnosis: When Does a Micromotor Collet Chuck Need Cleaning or Replacement?


Routine servicing keeps handpieces running true. However, specific operational symptoms indicate that a collet requires immediate mechanical intervention:

1. Bur Slippage or Spinning Under Load: If an inserted bur slips backwards into the chuck or stops spinning while the motor continues to drive under light contact pressure, the internal gripping jaws have lost friction or are packed with compacted debris.
2. Reduced Concentricity and Severe Handpiece Vibration: High-speed micro-vibrations, visible tool runout ("jumping"), or heat concentrating at the nose cone indicate that the chuck segments are closing unevenly around the shank. This unbalance puts destructive radial stress on front spindle bearings.
3. Stiff or Jammed Twist-Lock Mechanism: When twisting the handle from the "R" (Release) to "S" (Secure) position requires excessive physical effort—or locks up entirely—particulate matter has migrated into the chuck seats, blocking the travel of the internal drawbar.
4. Shank Diameter Conversion: Routine replacement is also required when transitioning between tooling standards, such as swapping out a standard 2.35mm (3/32") chuck for a 3.0mm or 1/8" (3.175mm) collet to accommodate larger rotary files or carving bits.

II.Preparation: Tools and Safety for Collet Removal and Installation

Before touching the assembly, gather the correct service fixtures. Using improper hand tools, such as needle-nose pliers, will mar the ground surfaces of the nosepiece and permanently damage the spindle runout.

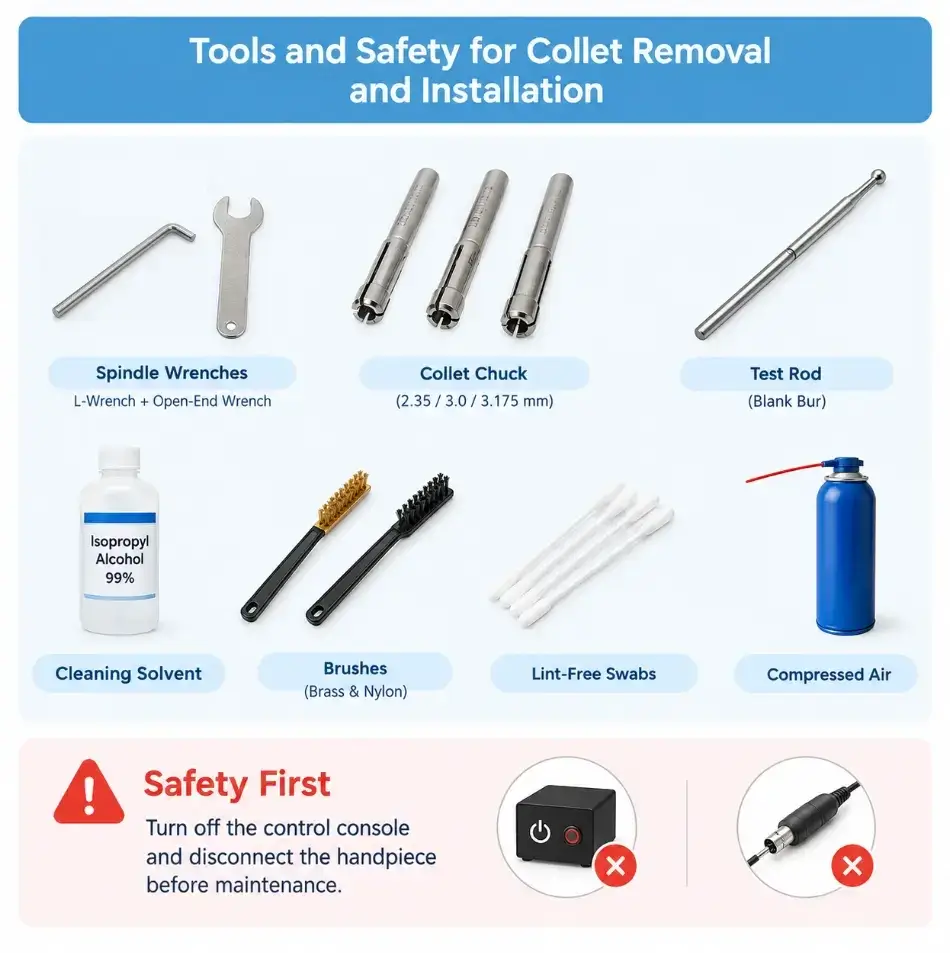

Essential Tools and Consumables

1. Handpiece Spindle Wrench Set: The factory-supplied stamped L-wrench or open-ended flat wrench matched specifically to your handpiece model’s wrench flats.
2. Standard Test Rod (Blank Bur): A precision-ground test blank or an old, perfectly straight bur shank (2.35mm or 3.0mm depending on chuck size).
3. High-Purity Cleaning Solvent: Anhydrous alcohol (99% isopropyl or denatured ethanol). Avoid water-based cleaners that cause flash rust on high-carbon spring steel.
4. Scrubbing Brushes: A brass wire detail brush and a stiff nylon brush.
5. Lint-Free Cleaning Swabs: Low-lint industrial foam or microfiber swabs.
6. Compressed Air Delivery: A focused air nozzle or dry aerosol duster.

III. Procedure: Full Process for Collet Removal, Cleaning, and Replacement

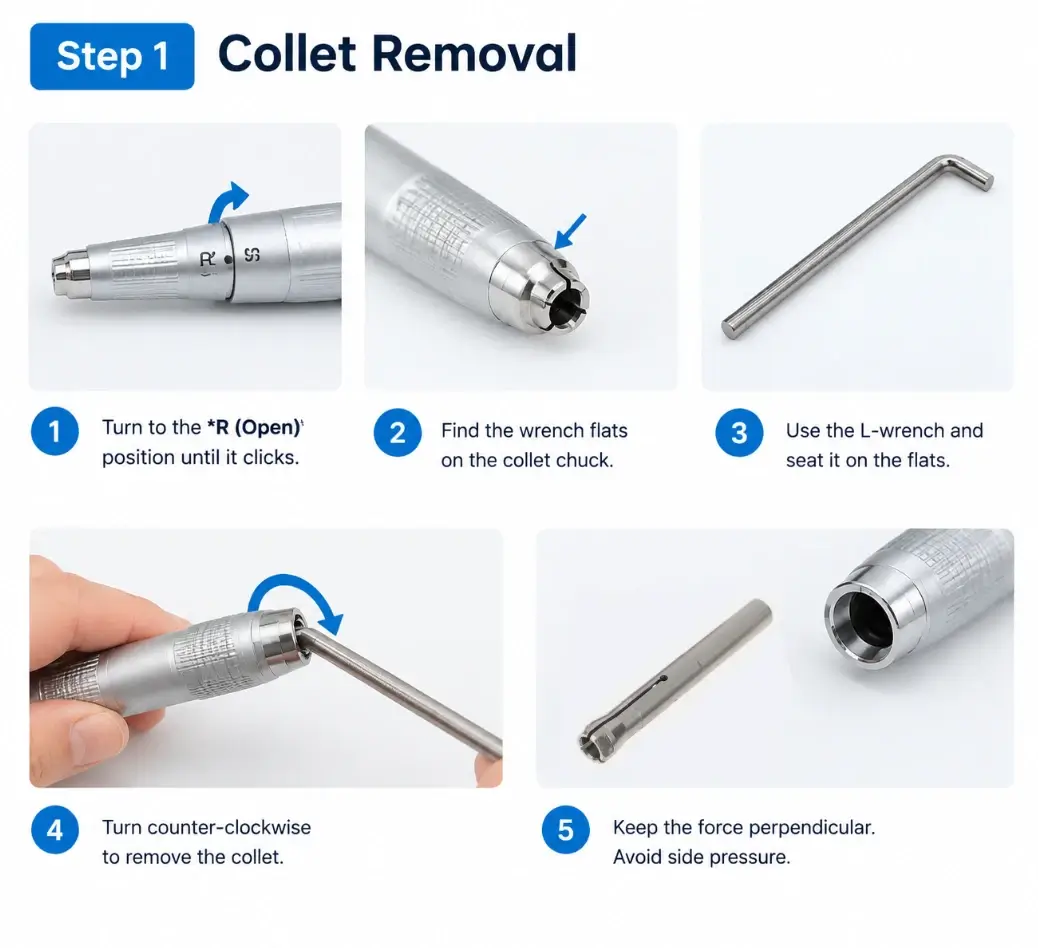

Step 1: Collet Removal



1. Turn the handpiece middle casing to the "Open" (R) position until it clicks into place.
2. Locate the two milled wrench flats on the collar of the collet chuck protruding from the nose cone.
3. Slide the opening of the dedicated L-wrench firmly onto these flats. Ensure the wrench seats squarely against the metal edges to avoid rounding the corners.
4. Grip the rear housing of the handpiece securely in one hand. Using the wrench, turn the collet counter-clockwise to unthread it from the internal spindle drawbar.
5. Keep your turning force perpendicular to the longitudinal axis of the handpiece. Never pry, tilt, or apply lateral leverage during rotation, as side-loading will bend the precision ground spindle.

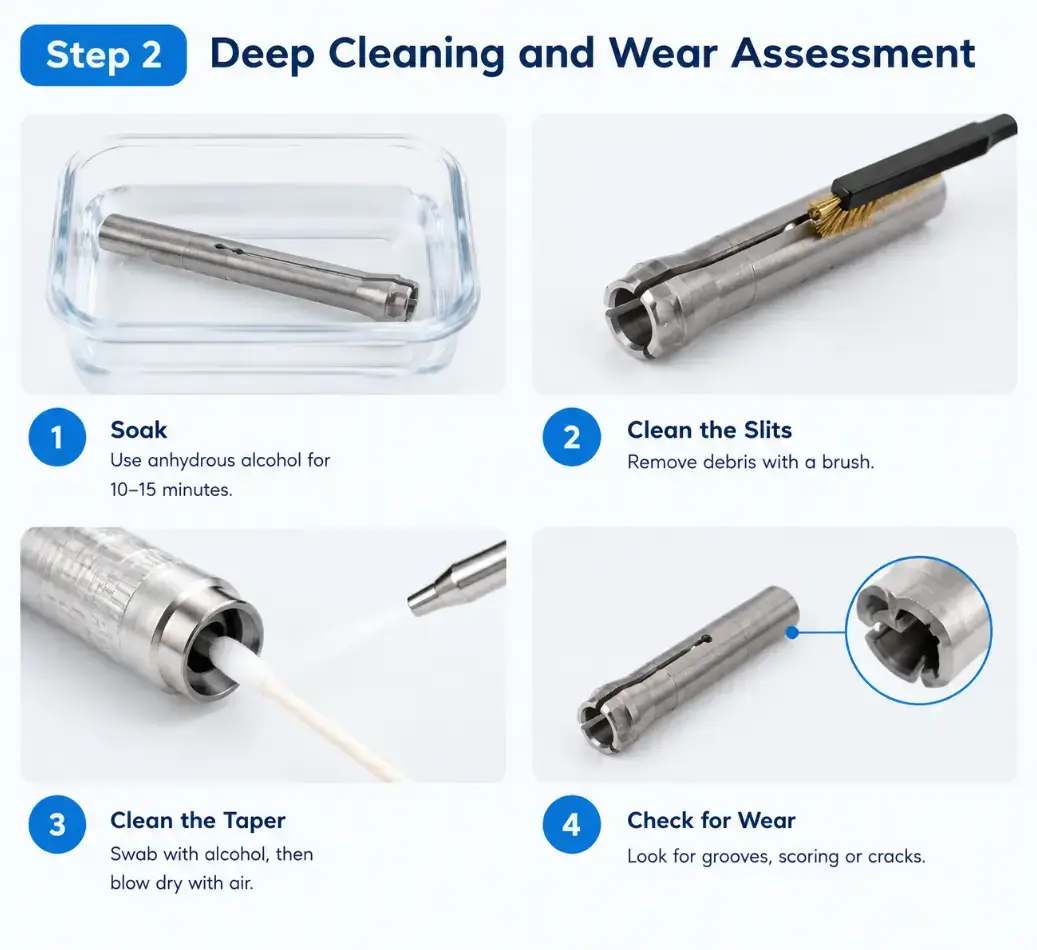

Step 2: Deep Cleaning and Wear Assessment



1. Solvent Soak: Submerge the unthreaded collet completely in a container of anhydrous alcohol for 10 to 15 minutes to soften dried binder residues, grease, and micro-debris.
2. Mechanical Slit Cleaning: Remove the collet and run the bristles of your stiff brush parallel along the longitudinal spring expansion slits. Dental gypsum, polishing compound (rouge), and metal swarf pack tightly into these expansion channels, preventing the spring steel petals from collapsing symmetrically.
3. Internal Bore and Spindle Taper Swabbing: Moisten a lint-free swab with anhydrous alcohol and clean the internal tapered receiving bore inside the handpiece nose. Swab until the surface wipes clean, then blow dry with compressed air. Dust left in this taper causes the new chuck to seat crookedly.
4. Wear Inspection: Examine the collet's exterior taper under magnification. Discard the chuck immediately if you identify grooving, scoring rings, galling, or hairline fractures along the base of the spring slits. A worn taper cannot clamp concentricity within tolerance.

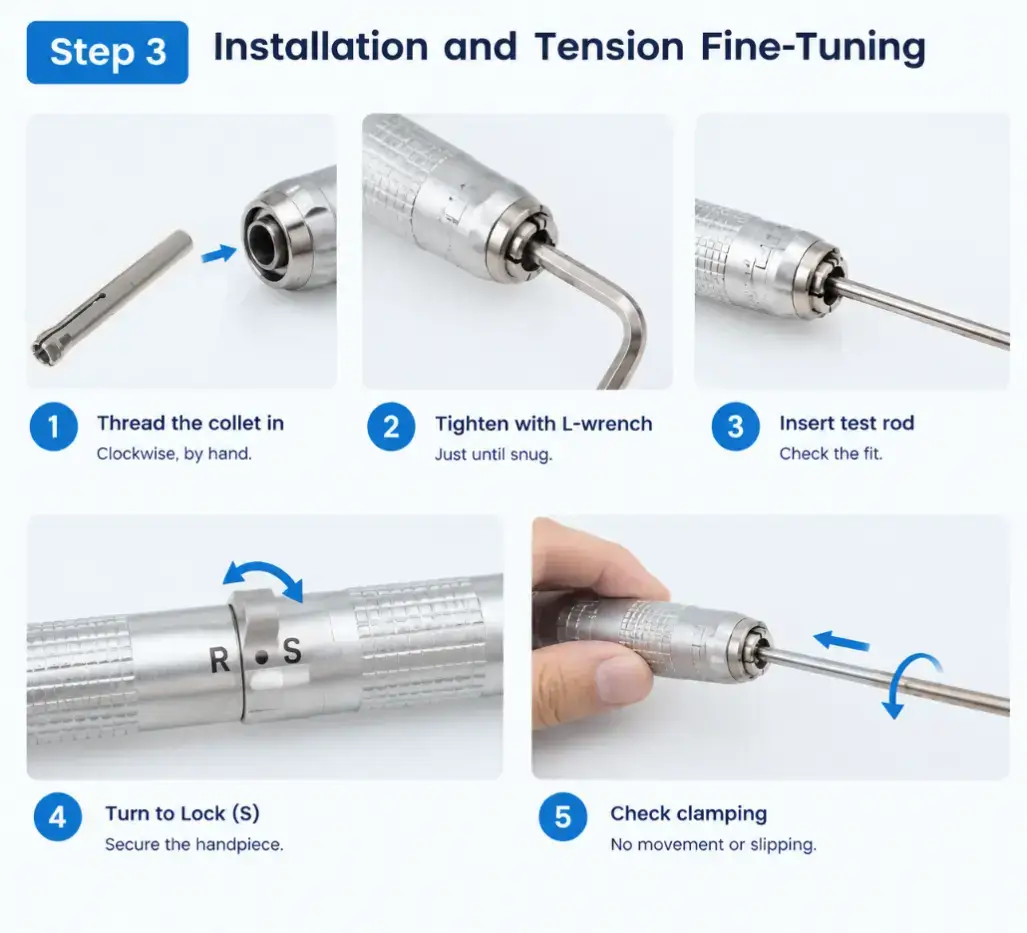

Step 3: Installation and Tension Fine-Tuning



1. Thread the replacement (or cleaned) collet clockwise into the handpiece spindle by hand until it makes initial seat contact.
2. Engage the L-wrench and tighten the chuck into the spindle threads just until snug.
3. Insert your standard test rod into the collet bore.
4. Twist the handpiece casing to the "Lock" (S) position.
5. Check clamping preload:
   • Attempt to pull and rotate the test rod by hand. It should remain stationary without axial play.
   • If the handpiece casing is too stiff to snap into the "S" position, unlock the sleeve, loosen the collet with the wrench by roughly 1/8th of a turn, and re-test.
   • If the casing locks too loosely and the test rod slips, unlock the handpiece, advance the collet clockwise by 1/8th of a turn, and verify clamping resistance again.

IV. Pitfalls to Avoid: Critical Errors in Collet Maintenance

1. Never Lubricate the Inside of the Collet: Clamping systems depend on high dry friction between hardened steel surfaces. Applying machine oil, WD-40, or grease inside the collet bore or taper reduces gripping friction, causing bits to slide under load. Furthermore, wet surfaces act as a trap for particulate matter, rapidly forming an abrasive slurry that ruins internal tolerances and seizes the drawbar.
2. Never Lock the Handpiece Empty: Always keep a blank test bur or an accessory installed whenever the handpiece sits in the "S" (locked) position on your bench. Forcing the chuck’s internal taper to collapse fully without an internal mandrel places intense stress on the spring petals, causing irreversible plastic deformation and loss of centering accuracy.
3. Never Force Mismatched Shank Diameters: A standard 2.35mm collet will not expand to safely clear a 3.0mm or 1/8" accessory shank. Forcing oversized burs into an undersized chuck spreads the spring steel segments beyond their yield point, permanently cracking the base of the expansion slits. Always swap the entire chuck unit when changing shank systems.

V. Troubleshooting Common Collet Issues

Why Does the Handpiece Still Vibrate After Installing a New Collet?

What Should You Do If the Handpiece Twist-Lock Casing Is Jammed?

Are Micromotor Collets Universally Interchangeable?
